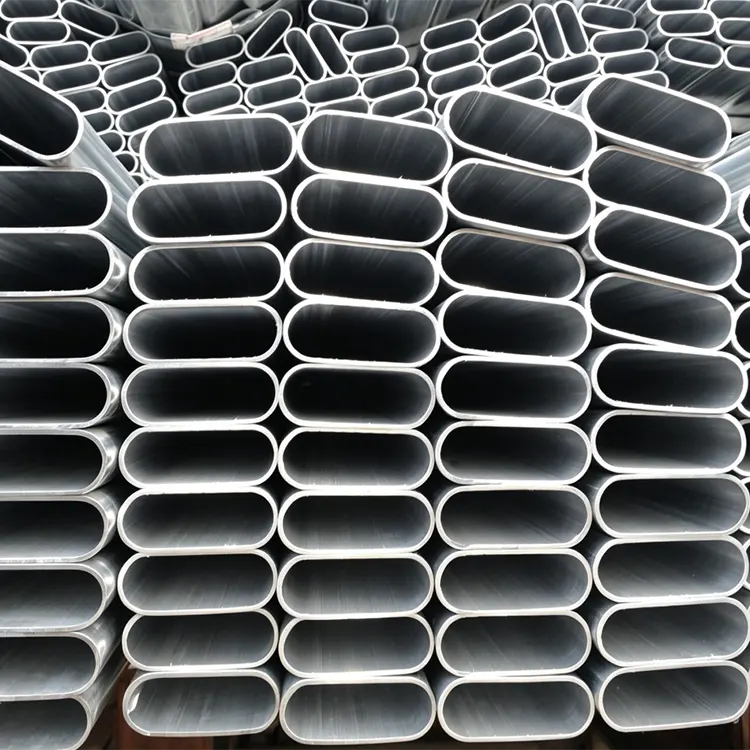

Oval Steel Tube

The Oval Steel Tubes manufactured by Shixinda's factory are divided into two forming processes: high-frequency welding and cold drawing seamless. They are suitable for different usage scenarios of light and heavy loads; they can be selected from various base materials such as Q series carbon steel, stainless steel, and aluminum alloy. At the same time, they support various surface anti-corrosion and decorative treatments such as bare pipe, hot-dip galvanizing, plastic coating, and wire drawing polishing. They are widely used in greenhouse sheds, municipal guardrails, precision machinery, equipment frames, and other fields, balancing cost, strength, and appearance aesthetics.

Forming process

High-frequency welded elliptical tubes: Steel strip is rolled and welded. It has fast production speed and high cost-effectiveness, and is widely used in greenhouses and guardrails;

Cold-drawn seamless elliptical tubes: Circular tubes are extruded to form. They have high precision and no weld seams. They are used in precision equipment and mechanical structures;

Main materials: Carbon steel Q195/Q235/Q355 (most commonly used), 304/316 stainless steel, 6063 aluminum alloy;

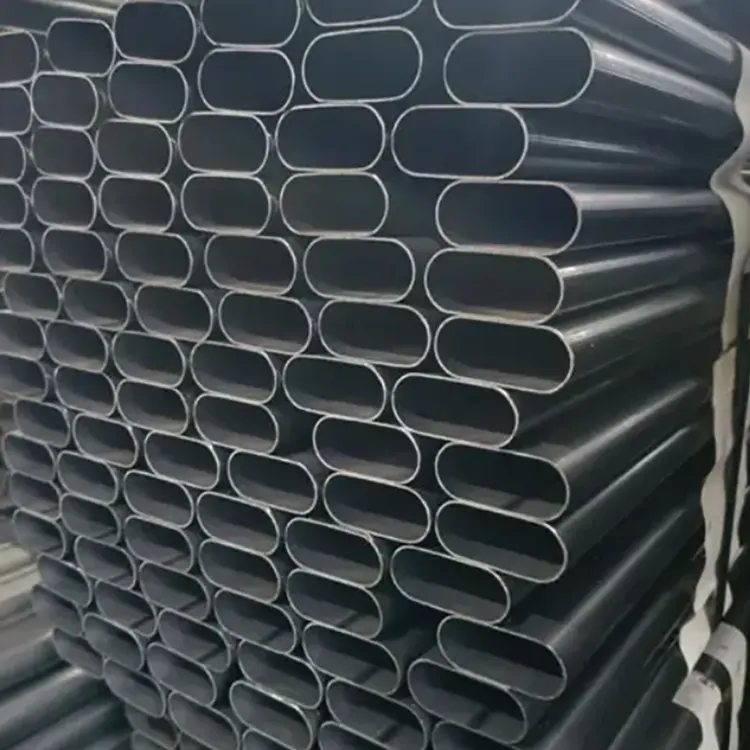

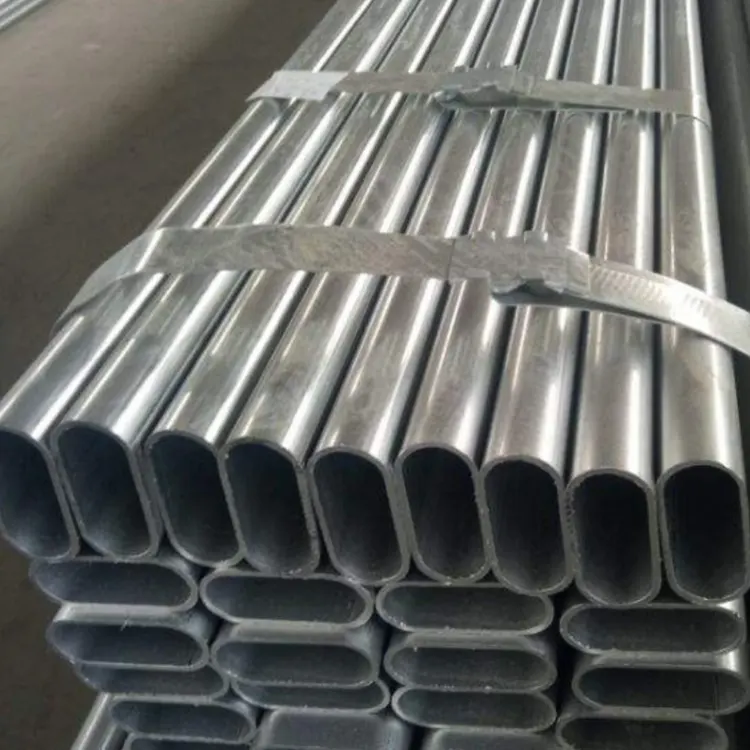

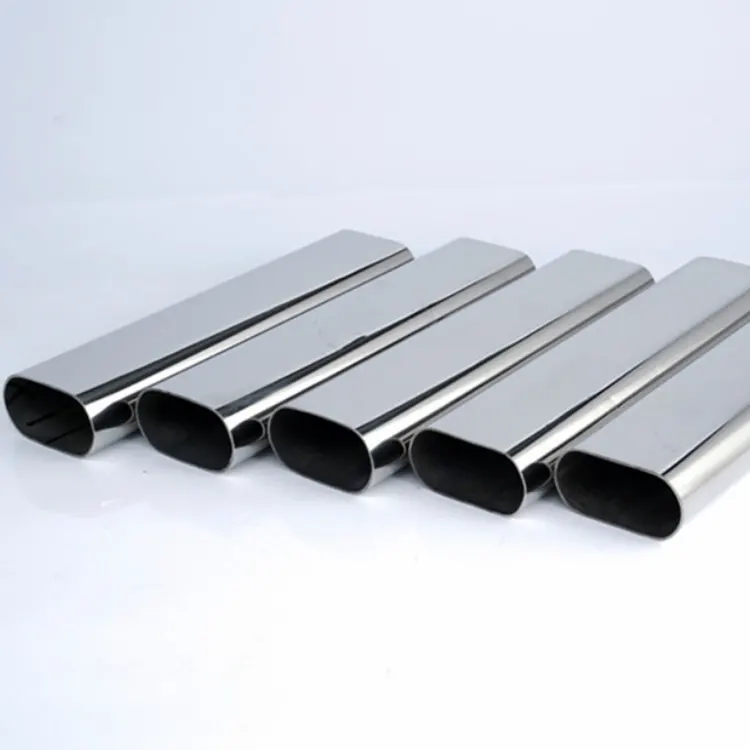

Surface treatment: Blackened bare tubes, hot-dip galvanizing, galvanized strips, plastic coating, polished and brushed stainless steel.

Core functions

According to application scenarios, they are divided into four main functional tracks:

Agricultural greenhouse load-bearing framework (core and mainstream application) - Replacing traditional round pipes as the arch frame of greenhouses, it has stronger vertical bending resistance and can withstand strong wind and snow, and is less likely to collapse under large-span conditions;

Building decoration protective structure - Stair handrails, courtyard guardrails, balcony railings, landscape fences, etc., with human grip fitting and simple and elegant design;

Lightweight equipment framework - Fitness equipment, office furniture, photovoltaic supports, display stands, agricultural machinery parts, etc., with the same strength, it uses less materials and has a lighter self-weight;

Fluid/ventilation lightweight pipelines - Ventilation and smoke exhaust, heat exchange pipelines. The streamlined cross-section has lower wind resistance than round pipes, reducing ventilation energy consumption.

Core selling points

1. Mechanical structure advantages

Directional anti-bending performance is outstanding: under the same cross-sectional area, the vertical anti-bending strength is 15% to 20% higher than that of round pipes, making the stability of the greenhouse and guardrail stronger, and eliminating the need for dense vertical columns for large spans;

The cross-section is flat and space-saving: the narrow direction thickness is small, the handrail fits the human body, and the adhesion of the greenhouse film is high, reducing the wear of the film;

Resistance to torsion, not prone to deformation, good cold bending processing performance, can be formed into arc-shaped arch frames in one step, with high processing efficiency.

2. Corrosion resistance and durability advantages

The thickness of the hot-dip galvanized layer is ≥ 65 μm, the neutral salt spray test lasts for 720 hours, the outdoor service life is 3 to 5 years longer than black pipes; The zinc layer damage can be self-protected by anode, delaying rusting;

Plastic-coated elliptical pipes are resistant to ammonia gas, acids and alkalis, and are suitable for breeding greenhouses and humid factory areas.

3. Cost and lightweight advantages

Under the same load-bearing requirements, elliptical pipes use less material than square pipes and thick-walled round pipes, reducing overall procurement and transportation costs; The self-weight is light, making it easier to build greenhouses and install on-site.

4. Appearance and usage experience

The circular arc flow line has no edges, the handrail is comfortable to hold and less likely to be knocked; The modern and simple appearance is superior to round pipes in municipal and home decoration effects;

The weld seams are flat and smooth, the surface is smooth, the adhesion of spray painting / spray coating is strong, and the later renovation is simple.

5. Strong adaptability

It can be cut, welded, drilled, and bent, supporting 6-meter standard fixed size + 3 to 12-meter non-standard customization; Full specifications are in stock, and production can be carried out for both small and large batches.

Basic Specification System

1. Dimension Annotation Rules

Uniform format: Long axis (mm) × Short axis (mm) × Wall thickness (mm), example: 30×60×2.0 (short axis 30, long axis 60, wall thickness 2mm)

2. Mainstream Standard Section Dimensions (mm)

Small size (furniture / lighting / small display stand)

15×30, 20×40, 20×50

Medium size (guardrail / staircase handrail / small to medium-sized greenhouse)

25×50, 30×60, 30×70, 40×80 (handrail universal model)

Large size (large-span greenhouse, heavy equipment frame)

30×100, 50×100, 60×112

3. Common Wall Thickness Range

Lightweight furniture / decorative pipe: 0.8~1.5mm

Standard greenhouses, ordinary guardrails: 1.5~2.5mm

Heavy-duty shed, industrial frame: 2.5~3.5mm

4.Material Corresponding Scenario Summary Table

Performance Test Description

1. Weld Inspection Test: Full ultrasonic inspection of the welds in the high-frequency welded Oval Steel Tube. There are no defective welds or cracks in the welds; the cold-drawn seamless type has no welds and has superior tensile and pressure resistance properties compared to welded pipe products.

2. Mechanical Bending and Compression Tests: Under the same wall thickness, the elliptical cross-section has a uniform force distribution, and its ability to resist bending deformation is better than that of the circular pipe. The greenhouse support can withstand long-term heavy loads without deformation.

3. Zinc Coating Corrosion Resistance Test: The hot-dip galvanized elliptical pipe has passed the salt spray test, and the zinc coating adhesion meets the standards. It is not prone to rusting or peeling when used outdoors and in the open air; the plastic-coated pipe material is resistant to acids and alkalis and resistant to ultraviolet rays.

4. Dimensional Accuracy Test: The cold-drawn seamless elliptical pipe has extremely small tolerance for the length and diameter dimensions, and the cross-section is regular, meeting the precision requirements for mechanical assembly; the dimensions of the welded pipe are controlled within the industry standards.

5. Material Strength and Impact Test: The Q355 high-carbon steel elliptical pipe has strong impact toughness and is less prone to cracking in low-temperature environments; the 304 stainless steel pipe material is resistant to water vapor corrosion and is suitable for humid and chemical environments.

6. Bending Processing Test: Qualified elliptical pipes can be normally bent, drilled, and cut for processing, with no cracks or depressions in the pipe wall, and are suitable for various secondary processing requirements.
