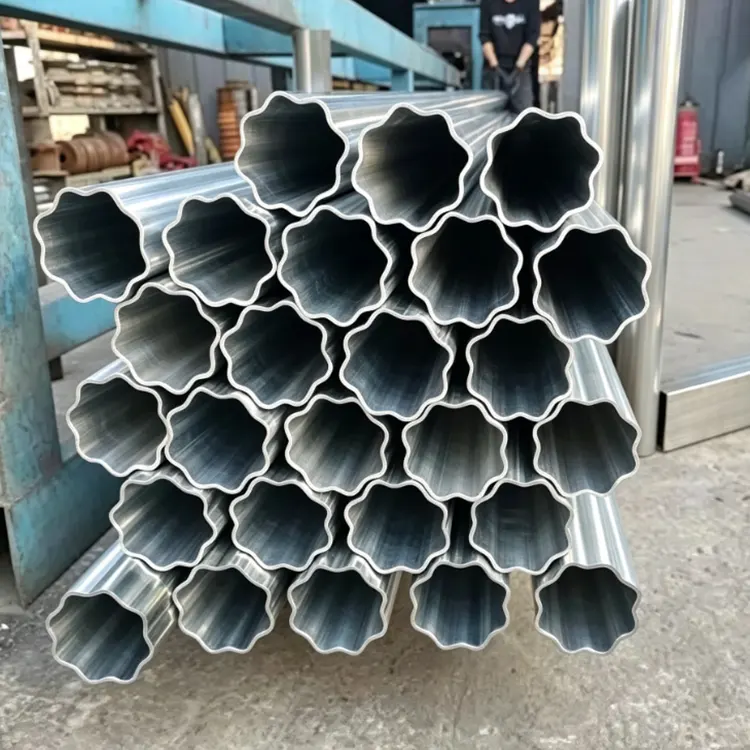

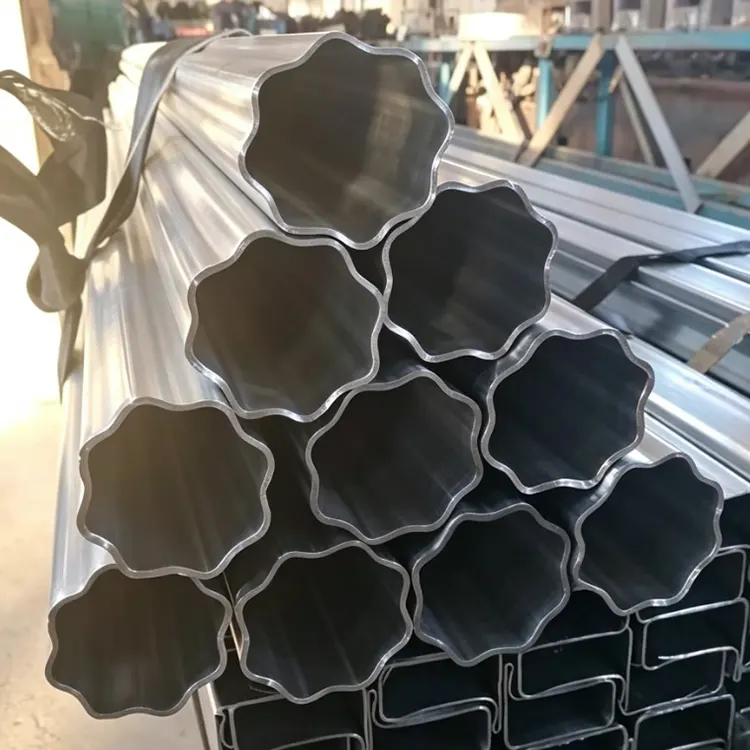

The Plum Blossom Shaped Steel Tube of Shixinda Factory is also known as honeycomb tube. It is formed by one-piece extrusion and has a cross-section with a honeycomb-like porous structure. It is a dedicated protective pipe for underground optical cables / weak current cables, in accordance with the national standard YD/T841.5-2016. It has multiple channels in one pipe and each hole is independently separated for wiring.
1. Multi-hole integrated molding, cost savings in construction. One pipe with multiple channels, replacing multiple single-threaded conduit pipes, narrow trench excavation, less backfill materials, significant reduction in labor and earthwork costs, and shortened construction period.
2. Independent partitioned holes, no interference between lines. Each hole is completely isolated. Optical fibers, surveillance, weak current, and communication lines are separately laid, no signal interference, and no need to move other cables during later maintenance.
3. Smooth inner wall, easy to run cables without damaging the cable. The inner wall has no burrs, the traction resistance is small, and running optical cables is less likely to scratch the outer skin, reducing the loss of construction cable breakage.
4. Corrosion-resistant and anti-aging, long underground lifespan. Resistant to acid and alkali corrosion, no rust or mold, HDPE buried for 50 years, PVC up to 30 years. Long-term underground use does not require frequent replacement.
5. Pre-leave hole positions, no excavation for expansion. Extra holes are reserved as backups. New broadband, surveillance, 5G lines do not need to re-dig trenches, and secondary renovation has zero earthwork costs.
6. Installation is convenient, and the sealing performance is good. The dedicated direct connection is provided, socket-type quick connection, and waterproof glue can be added for sealing. It is resistant to moisture and sand intrusion. It is also applicable in underground high water level areas.
7. High compressive strength, no worries about ground load. The pipe wall is thick and the structure is stable. Buried in sidewalks, green belts, and non-heavy-load roads, it is unlikely to be flattened or deformed, protecting the internal cables.
(labelled: Number of holes × Inner diameter of each hole / Overall outer diameter, hot-dip galvanizing for corrosion protection)
Model Specification Overall Outer Diameter Single Hole Inner Diameter Application Scenarios
5×28/86 Steel Pipe 86mm 28mm Heavy-load parks, factory monitoring branch lines
5×32/92 Steel Pipe 92mm 32mm Residential main roads, factory external networks
7×32/110 Steel Pipe (Bestseller) 110mm 32mm Municipal main roads, highways, explosion-proof communication for gas stations
9×32/110 Steel Pipe 110mm 32mm Industrial parks, wiring for large computer rooms
12×32/132 Steel Pipe 132mm 32mm Utility tunnels, trunk lines under heavy-load roadbeds
Base material: Q235 straight seam welded pipe, internal and external hot-dip galvanizing (for corrosion protection and underground use)
Standard wall thickness: 2.5mm, 3.0mm, 3.5mm (for heavy-duty roads, 4.0mm is also available)
Single length: 6 meters, equipped with steel socket joints and waterproof sealing rings
1. Cold-drawn Seamless Plum Blossom Shaped Steel Tube: 20#, 45# materials, precision mechanical parts, non-standard sizes can be molded
2. Specialized for Greenhouses: 30×50, 45×65 large-diameter thick-walled, wind-resistant and snow-proof supports
3. Mining Multi-pore Pipes: Underground communication cable protection, thickened explosion-proof customized model
1. Residential and villa wall zinc steel guardrails: Shixinda hot-dip galvanized heart-shaped tubes have no rust and do not peel, the petal shape is more beautiful than ordinary round tubes. Domestic real estate companies and municipal guardrail factories have long been bulk purchasing, with complete cutting and punching processing services as support.
2. Park walkways, river protection railings, pedestrian isolation barriers: Outdoor open-air resistant to acid and alkali rainwater, suitable for urban greening renovation, cultural tourism scenic area projects.
3. Balconies, stair iron handrails, courtyard gates and flower racks: Special-shaped cross-section with strong three-dimensionality, the preferred choice for home decoration and industrial decoration projects.
4. Road vehicle non-motorized isolation barriers, temporary construction protection fences at construction sites: Wall thickness 1.0–3.0mm selectable, impact-resistant and not prone to deformation.
1. Fruit and vegetable greenhouse arch frames, pillars: Shixinda thickened heart-shaped tubes have strong bending bearing capacity, can resist snow and wind, replacing ordinary round tubes to reduce the collapse of the greenhouse structure, batch export to Kazakhstan, Vietnam, Thailand agricultural infrastructure.
2. Cattle and sheep breeding sheds, seedling sheds supports: Hot-dip galvanized anti-corrosion, does not rust in damp soil environment for many years, long-term purchase by agricultural cooperatives, overseas farms.
3. Agricultural machinery equipment supporting brackets, flower frame frameworks: Lightweight and high-strength, compatible with metal processing factories.
Advertising sign supports, factory isolation nets, iron art components; support fixed cutting of 6m/9m, spray painting, baking coating processing, Shixinda can provide one-stop processing and delivery service
1. Urban main roads, elevated roads, heavy-load roads communication pipelines: Plastic heart-shaped pipes are prohibited in sections where heavy vehicles pass; Shixinda galvanized steel pipes can withstand pressure without deformation, and are suitable for mobile/union/TVG optical cable underground laying.
2. Highways, national roads, tunnels, railway weak current wiring: Roadbed gravel is abundant and settlement is large; metal pipes are corrosion-resistant, suitable for national transportation key projects.
3. Large industrial parks, logistics parks, heavy-load parking lots underground weak current pipelines: Forklifts and heavy trucks pass frequently; protection monitoring, optical fiber cables.
.
Metal material anti-static, flame-retardant explosion-proof, meets construction specifications for flammable and explosive sites, factory monitoring, signal cable pre-burial standard.
1. Underground communication protection pipes in coal mines: Flame-retardant and pressure-resistant, suitable for complex geological environments in underground mines.
2. Airports, high-speed railway stations, urban comprehensive pipe gallery branch lines: High-standard infrastructure projects, requiring a 50-year underground burial lifespan, Shixinda internal and external hot-dip galvanized long-term anti-corrosion.
