This Solar Mounting Bracket, directly sold by Shixinda's factory, is modular prefabricated and assembled with full bolts on-site. There is no need for on-site welding, significantly shortening the construction period. The inclination angle can be adjusted from 5° to 45°, compatible with large-sized components such as 182/210. It can be combined with spiral ground anchors, roof fixtures, and counterweight bases for various foundations, and can be customized for complex terrains such as mountains, color steel roof, and fish ponds. Compared to ordinary brackets, the ventilation and heat dissipation design reduces component degradation, and the tracking model can increase power generation by 15%-30%.
As a source steel manufacturer, Shixinda independently controls the profile specifications. C-shaped steel, square tubes, and a complete set of 304 stainless steel accessories are produced and sold in-house, balancing cost performance and delivery speed. It supports custom orders for bulk export orders, and the steel can be recycled, meeting the needs of zero-carbon photovoltaic projects. It provides stable and reliable complete support solutions for domestic and foreign photovoltaic power stations.
The Solar Mounting Bracket is a specialized steel structure/aluminum alloy component system used for fixing, supporting, and bearing solar photovoltaic modules. It is equipped with connecting parts, bases, and adjustment accessories and is installed on the ground, roof, car shelter, water surface, etc. It is a core auxiliary material for photovoltaic power stations, stabilizing the photovoltaic panels at the optimal inclination and orientation to ensure their stability, and is divided into fixed type, tracking type, floating type, and roof support types.
Load-bearing and fixation: Bearing the weight of the photovoltaic panels, wind pressure, snow pressure, and seismic loads to prevent the components from overturning or falling off;
Angle optimization: Adjusting the inclination and orientation of the photovoltaic panels to maximize solar irradiation reception and improve overall power generation;
Protection and protection: Isolating the photovoltaic panels from the ground/roof, providing ventilation and heat dissipation, reducing water accumulation and snow accumulation, and delaying component aging;
Standardization and compatibility: Arranging the components uniformly, leaving a maintenance passage, facilitating cleaning, maintenance, and replacement of components;
Scene adaptability: Adapting to complex terrains such as mountains, plains, color steel tile roofs, concrete roofs, and fish ponds.
Mainly uses hot-dip galvanizing / zinc-aluminum-magnesium alloy. It has high corrosion resistance and is suitable for use in seaside, saline-alkali areas, and rainy regions. The anti-corrosion life is 25 years +, matching the lifecycle of photovoltaic modules. The power station can avoid frequent replacements throughout its entire period.
Precise inclination design and automatic tracking of the support structure. Compared with flat-lying components, it can increase power generation by 10% to 30%.
The support structure has ventilation function, reducing the working temperature of the components and minimizing temperature-related degradation.
Designed according to national standards for load-bearing, resistant to strong winds, snow, and earthquakes. The structural mechanics calculation is qualified.
Modular assembly, reinforced nodes, no on-site welding for on-site assembly, and strong overall rigidity.
All prefabricated modular components are assembled with bolts on-site. No on-site welding is required.
The accessories are universal and compatible with mainstream 550W/700W/700W + large-sized photovoltaic modules. It is compatible with double glass and single glass modules.
Aluminum alloy supports have a light weight, reducing the roof load. Galvanized steel supports have high cost performance and low unit cost.
The profiles are regular, the packaging is compact, and the loss during logistics transportation is small, with lower freight costs.

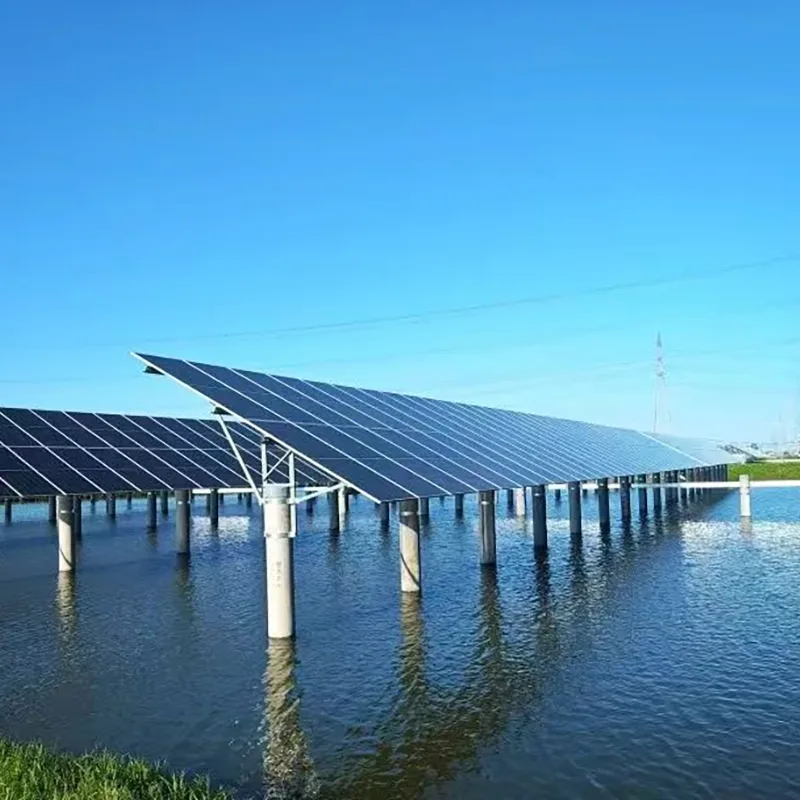

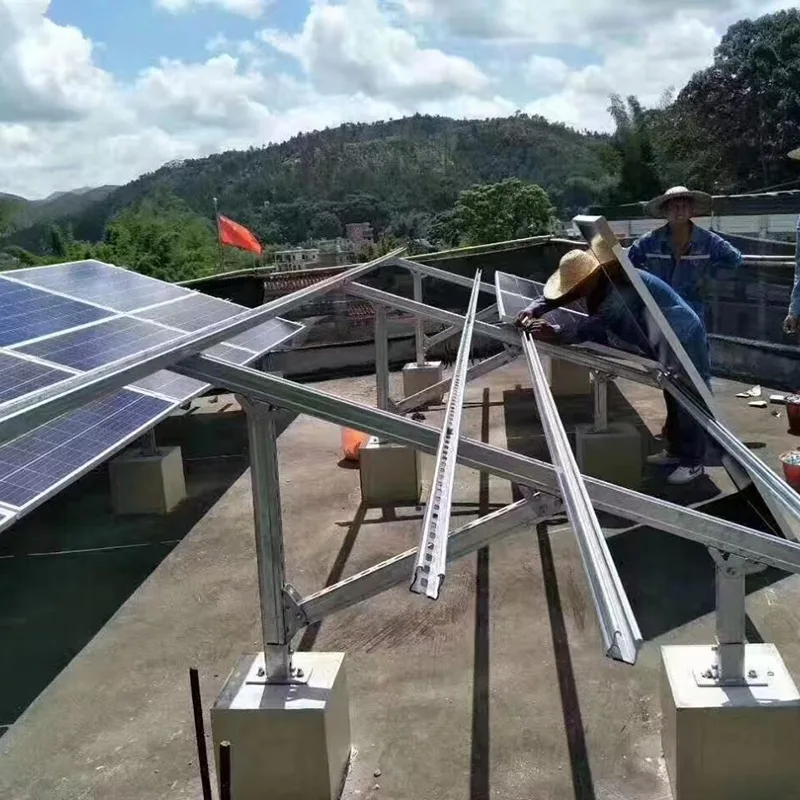

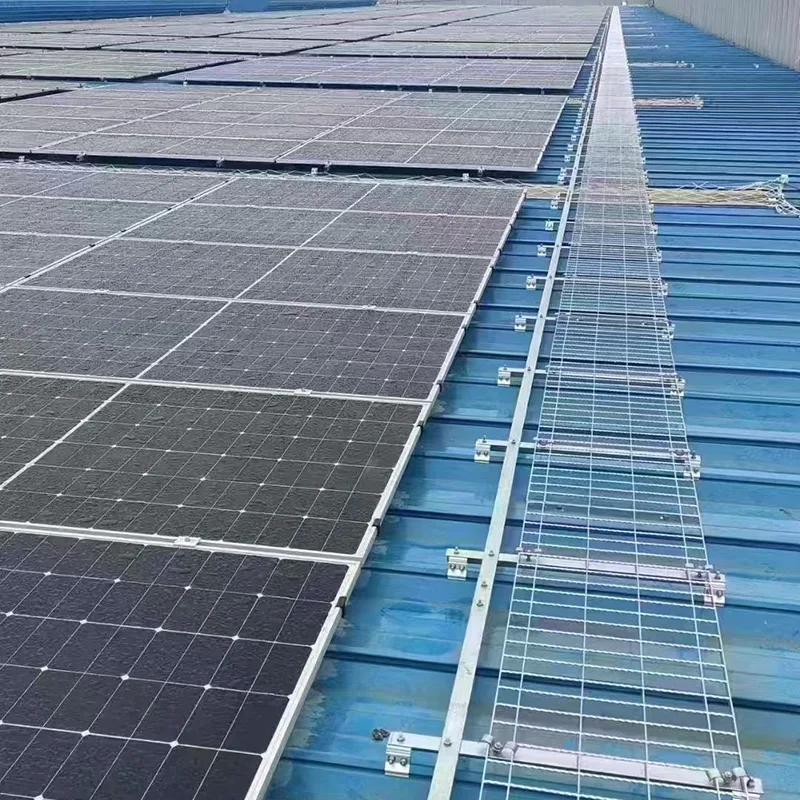

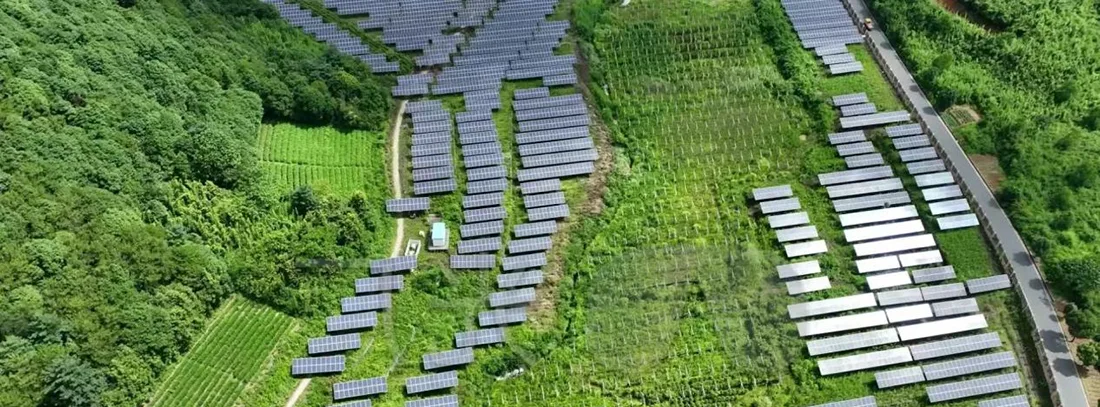

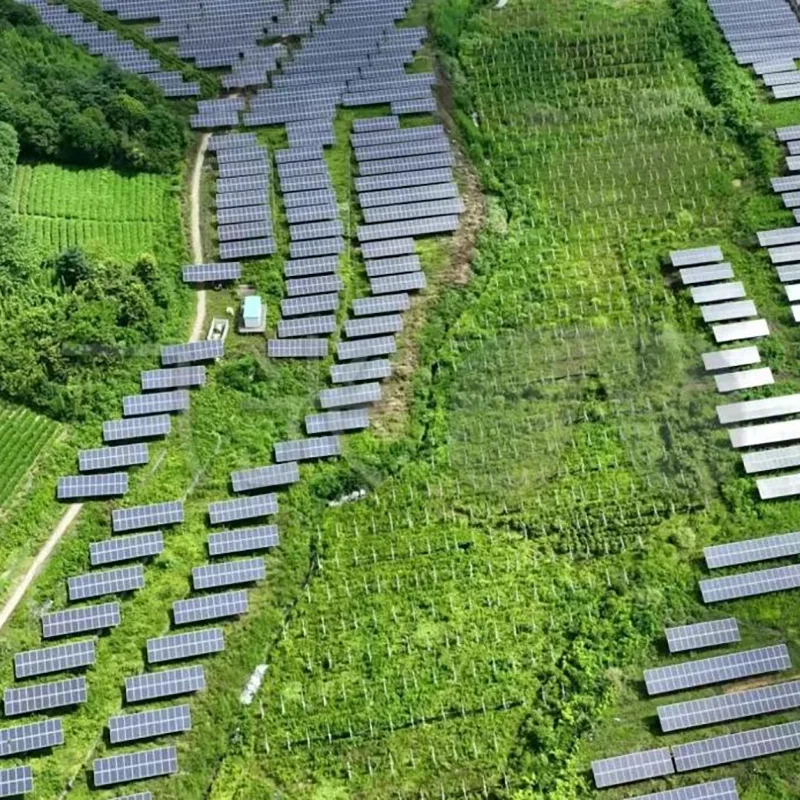

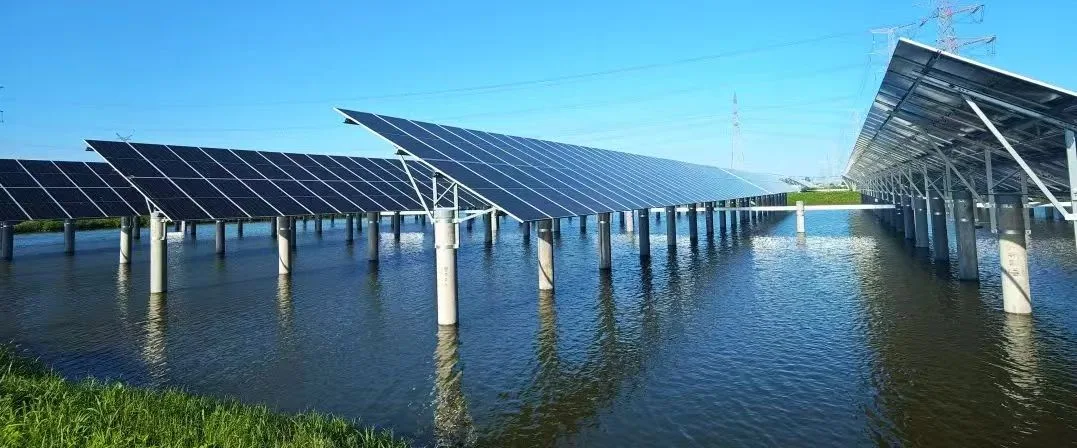

Ground power stations, color steel tile roofs, concrete roofs, photovoltaic car shelters, fishery photovoltaic integration, and mountainous photovoltaic can all be customized.
It can be adjusted for inclination, arranged in double rows or single rows, and adapted to terrain with height differences.
Steel and aluminum alloy are 100% recyclable, with no construction waste. The zinc-aluminum-magnesium coating has no heavy metal pollution and meets the requirements of zero-carbon photovoltaic projects.
| Category | Parameter | Core Specification Standard | Application / Notes |
| Material & Anti-Corrosion | Hot-dip Galvanized Carbon Steel Bracket | Base material: Q235B/Q355B low-alloy high-strength steel; coating thickness ≥85μm; salt spray test 500h without red rust | Ground-mounted and mountain PV plants; cost-effective first choice; suitable for most regions nationwide |
| Zinc-Aluminum-Magnesium Alloy Steel Bracket | Base material: Q235B/Q355B; Zn-Al-Mg alloy coating thickness ≥65μm; salt spray test 1500h without red rust | Coastal, saline-alkali, and industrial zones with high-corrosion environments; corrosion resistance far exceeds ordinary hot-dip galvanizing | |
| 6063-T5 Aluminum Alloy Bracket | Tensile strength ≥160MPa; anodized / passivated treatment; salt spray test 1000h without corrosion | Color-coated steel roofs, C&I / residential rooftops; lightweight, does not damage roof waterproofing layer | |
| Structural Safety Load | Wind Load | 0.5–1.0 kN/m², customizable for typhoons of level 12 and above | Covers most regions nationwide; profiles can be thickened for coastal / strong-wind areas |
| Snow Load | 0.3–1.2 kN/m², customizable per local 50-year return-period snow load | Northern heavy-snow regions and high-altitude areas require upgraded design per local codes | |
| Seismic Resistance | Seismic fortification intensity 8, compliant with GB50011 | Can be upgraded to intensity 9 in high-seismic zones | |
| Design Service Life | 25 years | Matches the full lifecycle of PV modules, in line with common PV plant design standards | |
| Tilt Angle & Adjustment | Fixed Bracket | Adjustable tilt 5°–45°, optimal generation tilt customized by local latitude, 2–3 manual adjustment levels | Common for ground-mounted plants and concrete roofs; the current mainstream category |
| Single-Axis Tracker | East-west 0°–60° automatic sun-tracking rotation, tracking accuracy ±0.5° | Large flat ground-mounted plants; output increased 15%–25% vs. fixed | |
| Dual-Axis Tracker | Azimuth ±180° + tilt 0°–90° dual-axis adjustment, tracking accuracy ±0.3° | High-latitude, high-irradiance regions; output increased 25%–35% vs. fixed | |
| Roof Ballast Bracket | Fixed tilt 10°–15°, compatible with standing-seam color-coated steel and concrete roofs | C&I / residential rooftops; balances drainage efficiency and generation yield | |
| Core Profile Specs | Columns / Posts | C-channel / H-beam / square tube; mainstream sizes C80/C100/C120, 80×80/100×100 square tubes | Main load-bearing members of ground-mounted plants; wall thickness customizable per load |
| Main / Purlin Beams | U-channel / rectangular tube / aluminum extruded profiles; mainstream sizes 40×40/40×80/60×60 | Direct module-support members ensuring overall stiffness and stability | |
| Connection Accessories | Stainless steel 304 bolts/nuts, dedicated clamps, waterproof clips; compliant with GB/T 3098.6 | Universal across the series; anti-corrosion, anti-loosening; compatible with mainstream PV module frames | |
| Grounding Accessories | Dedicated grounding washers and bolts | Meets PV system grounding requirements; prevents electrochemical corrosion; complies with electrical safety codes | |
| Module Compatibility & Layout | Compatible Module Sizes | 182mm/210mm large-format monocrystalline, bifacial and single-glass modules; supports 550W–700W+ mainstream modules | Customizable for special sizes and special module formats |
| Layout | Single-row portrait, double-row landscape, high-bracket large-span layouts | Layout optimized per terrain and shading to maximize installed capacity | |
| Single-Span | Ground brackets 2–6m, roof brackets 1–3m | Adjustable per load and profile specs, balancing cost and structural safety | |
| Module Spacing | Calculated per local winter-solstice shadow, with O&M access reserved | Ensures no winter shading, compliant with PV plant design codes | |
| Installation Foundation | Ground-Mounted Foundation | Screw anchors, independent concrete pile foundations, strip foundations | Suitable for mountain, plain, fish-pond terrains; screw anchors need no excavation and install fast |
| Color-Coated Steel Roof Foundation | Non-penetrating installation with dedicated clips | Does not damage roof waterproofing; compatible with standing-seam, angle-bead, and corrugated steel profiles | |
| Concrete Roof Foundation | Ballast block foundations | No nailing, no damage to roof structure, quick to install/remove; suitable for flat and low-slope roofs | |
| Mountain PV Foundation | Adjustable pile foundations, rock anchor foundations | Adapts to mountain terrain with large elevation differences and complex geology, reducing earthwork excavation |
Shixinda Solar Mounting Bracket is made of Q355B high-strength material, featuring three mainstream types: hot-dip galvanizing, zinc-aluminum-magnesium, and 6063-T5 aluminum alloy. The galvanizing layer thickness is ≥ 85 μm. The salt spray test of the zinc-aluminum-magnesium model can reach 1500 hours. It has outstanding adaptability in high-corrosion environments such as coastal and saline-alkali areas, with a design service life of 25 years, matching the lifecycle of photovoltaic modules. The product strictly follows national load standards and can withstand 12-level strong winds and high snow loads, meeting 8-degree seismic design standards. The structural safety redundancy is sufficient.
The product is modular prefabricated and assembled with full bolts on-site, without the need for on-site welding, significantly shortening the construction period. The inclination angle can be adjusted from 5° to 45°, compatible with large-sized components such as 182/210, and can be paired with spiral ground anchors, roof fixtures, and counterweight bases for various foundations. Customization is available for complex terrains such as mountains, color steel roofs, and fish ponds. Compared to ordinary brackets, the ventilation and heat dissipation design reduces component degradation, and the tracking model can increase power generation by 15%-30%.
As a source steel manufacturer, Shixinda independently controls the profile specifications. C-shaped steel, square tubes, and a complete set of 304 stainless steel accessories are produced and sold in-house, balancing cost performance and delivery speed. It supports custom orders for bulk export orders, and the steel can be recycled, meeting the needs of zero-carbon photovoltaic projects, providing stable and reliable complete support solutions for domestic and foreign photovoltaic power stations.
