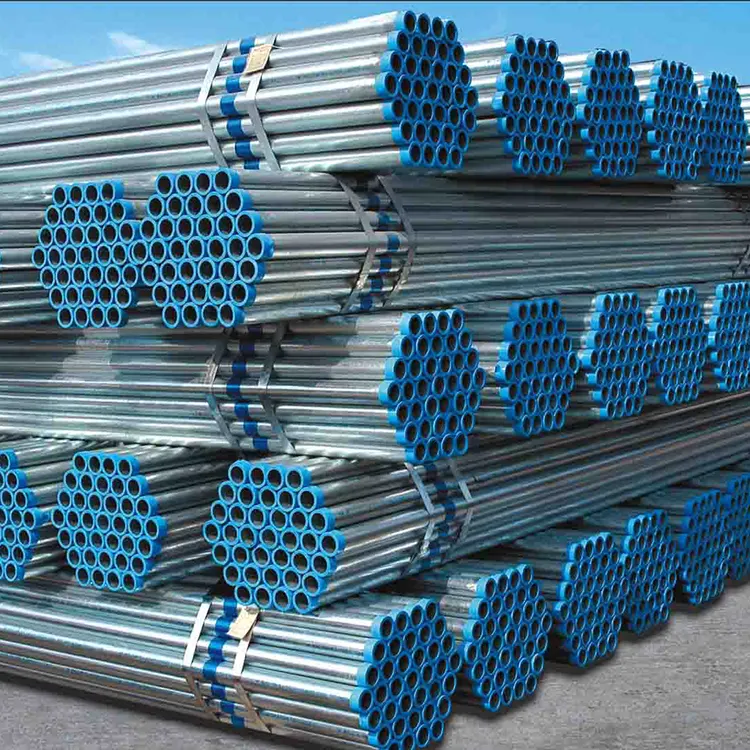

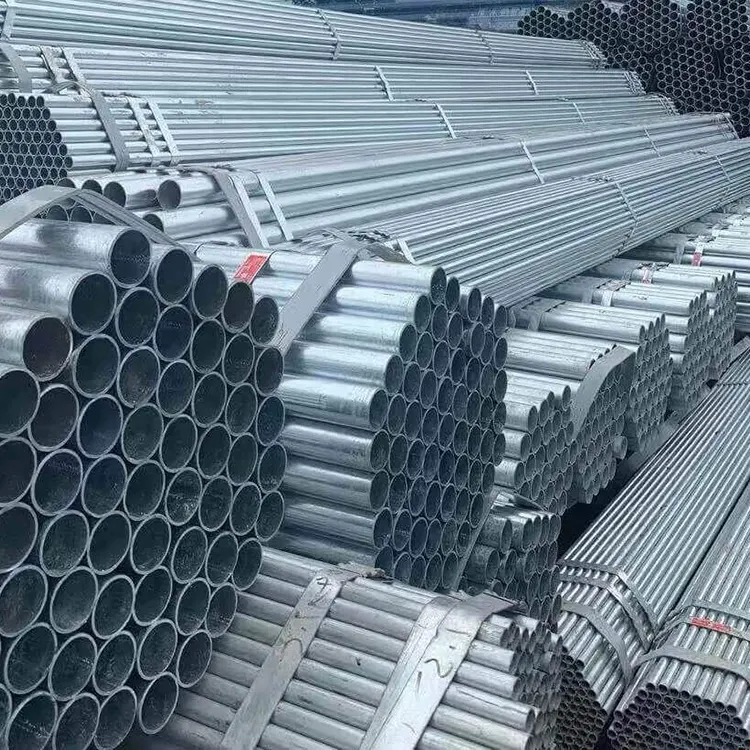

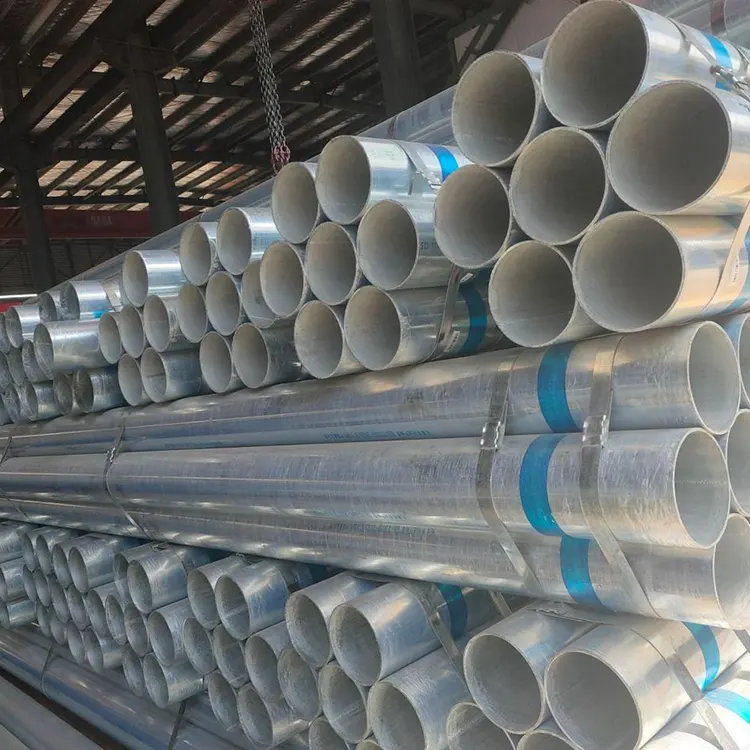

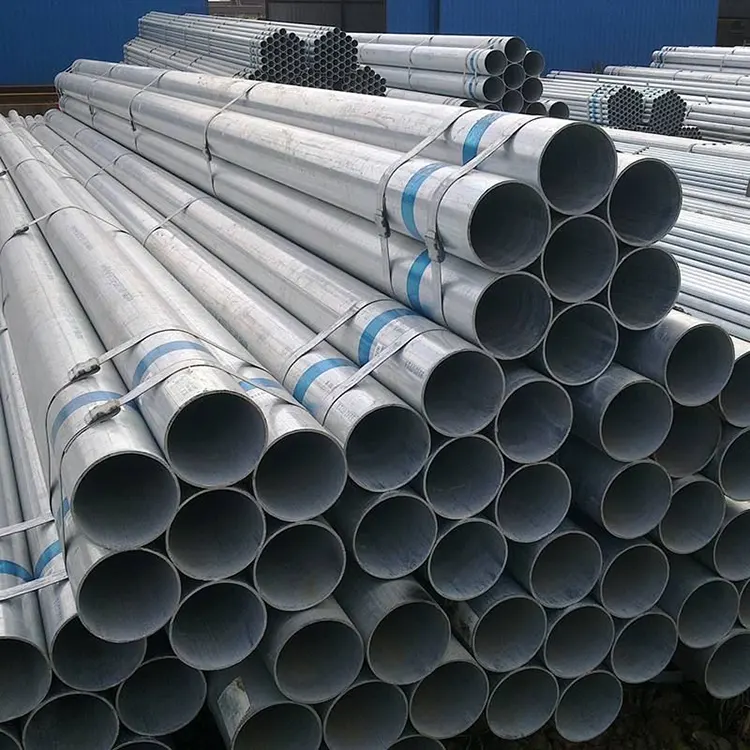

Shixinda directly sells China Galvanized Steel Pipes. The inner walls of the pipes are smooth without burrs, and the welding welds are flat and tight. The overall torsional and compressive performance is stable. The finished heat-dip zinc products undergo a complete zinc immersion process treatment, with uniform and full zinc layers both inside and outside the pipe walls, which isolate water vapor and air corrosion media, and are suitable for various outdoor, humid, and open-air construction environments.
The pipe sizes cover Φ20mm to Φ630mm, with wall thickness ranges of 1.0mm to 18mm. Multiple base materials such as Q195, Q235B, Q355B, and 20# seamless can be selected. The standard factory length is 6 meters, and it supports arbitrary length non-standard cutting, beveling, and punching pre-processing, suitable for batch purchases by various industries such as water supply and drainage, energy, steel structures, agriculture, and municipal works.
1. Dual inspection and quality control, lower leakage risk
2. Dual product lines of seamless and welded pipes, flexible matching of budgets as needed
3. Spot delivery from the factory, shortening the supply cycle
4. Full coverage of inner and outer wall zinc plating process, no blind spots in corrosion prevention
5. Complete customized processing services, direct on-site construction upon entry
6. Rich material categories, suitable for all working conditions from light to heavy loads
7. Complete qualification support, ensuring smooth project acceptance
Fire protection water supply pipes, low-pressure gas transmission pipelines, support columns for photovoltaic power stations, arc-shaped frameworks for agricultural greenhouses, exterior scaffolding for construction sites, isolation guardrails for municipal roads, steel structure supports for factories, hydraulic transmission pipelines for equipment, landscape decorative railings for residential areas, buried underground water supply pipelines.
1. Dual anti-corrosion: The zinc layer isolates moisture; when the zinc layer is damaged, the zinc corrodes first to protect the steel pipe base (electrochemical protection);
2. Internal and external galvanization: The inner wall of the hot-dip galvanized pipe is fully coated, and it is not prone to scaling or fluid resistance is low;
3. High mechanical strength: It can be bent, welded, and drilled, suitable for greenhouses, guardrails, and supports;
4. Weather-resistant and soil-resistant: It can be used for long-term in open-air, underground, and mild acidic or alkaline environments;
5. Installation is convenient: Commonly used connection methods include threads, flanges, and grooves, and the construction is mature.
|
Nominal DN |
Common Name |
Outer Diameter (mm) |
Standard Wall Thickness (mm) |
Theoretical Weight (kg/m) |
Typical Application |
|
DN15 |
4-point pipe |
21.3 |
2.8 |
1.34 |
Household water supply, conduit pipe |
|
DN20 |
6-point pipe |
26.9 |
2.8 |
1.76 |
Air conditioning water pipe, branch pipeline |
|
DN25 |
1-inch pipe |
33.7 |
3.2 |
2.55 |
Main household water inlet pipe, greenhouse frame |
|
DN32 |
1.2-inch pipe |
42.4 |
3.5 |
3.32 |
Small fire branch pipeline |
|
DN40 |
1.5-inch pipe |
48.3 |
3.5 |
3.84 |
Commercial shop water supply |
|
DN50 |
2-inch pipe |
60.3 |
3.8 |
5.29 |
Main fire pipeline, greenhouse support column |
|
DN80 |
3-inch pipe |
88.9 |
4.0 |
8.34 |
Municipal main water supply pipeline |
|
DN100 |
4-inch pipe |
114.3 |
4.0 |
10.85 |
Factory fire protection, gas pipeline |
|
DN150 |
6-inch pipe |
168.3 |
4.5 |
18.18 |
Municipal drainage, large-flow water delivery |
|
DN200 |
8-inch pipe |
219.1 |
6.0 |
31.53 |
Large pipeline network, steel structure support |
Shixinda Steel Pipe Co., Ltd. is located in the Daokouzhuang Steel Pipe Industrial Base. We specialize in supplying all specifications of hot-dip galvanized round pipes, and can also provide customized production of welded pipes and seamless galvanized round pipes. We adopt a standardized hot-dip galvanizing process throughout the process, precisely controlling the temperature at 440-480℃ for molten immersion plating. The inner and outer walls of the pipes form a dense zinc-iron alloy layer, with a thick and uniform zinc layer, strong adhesion, and not prone to peeling or falling off. It is highly resistant to corrosion and durable. The wall thickness and outer diameter of the pipe materials are standard, with good straightness.
It has strong pressure-bearing capacity and can be bent, threaded, or processed with grooves. It is suitable for various scenarios such as fire protection, water supply and drainage, greenhouses, steel structures, and municipal engineering. From raw material selection to finished product inspection, we strictly control every step. We refuse inferior cold-dip galvanized pipes with thin zinc layers. We have sufficient in-stock and stable quality. We welcome all customers to inquire and cooperate.
In normal soil conditions, they can be directly buried. For acidic or alkaline soil, it is recommended to use anti-corrosion coatings.
For low-pressure supports, welded pipes are preferred. For high-pressure fluids and heavy-duty conditions, seamless pipes are recommended.
Non-standard lengths can be cut, and beveling and punching processing can be done as needed.
The starting diameter for the available stock is Φ20mm, and the maximum supply diameter can reach Φ630mm.
The pipes are tested with dual probes upon leaving the factory, and the zinc layer on the welds is complete and not prone to rust.
Orders of 5 tons or more can be delivered as a complete vehicle. Small quantities of pipe materials can be delivered by less-than-truckload across the country.
All have passed water pressure tests and comply with the national standards for fire protection pipe usage.
