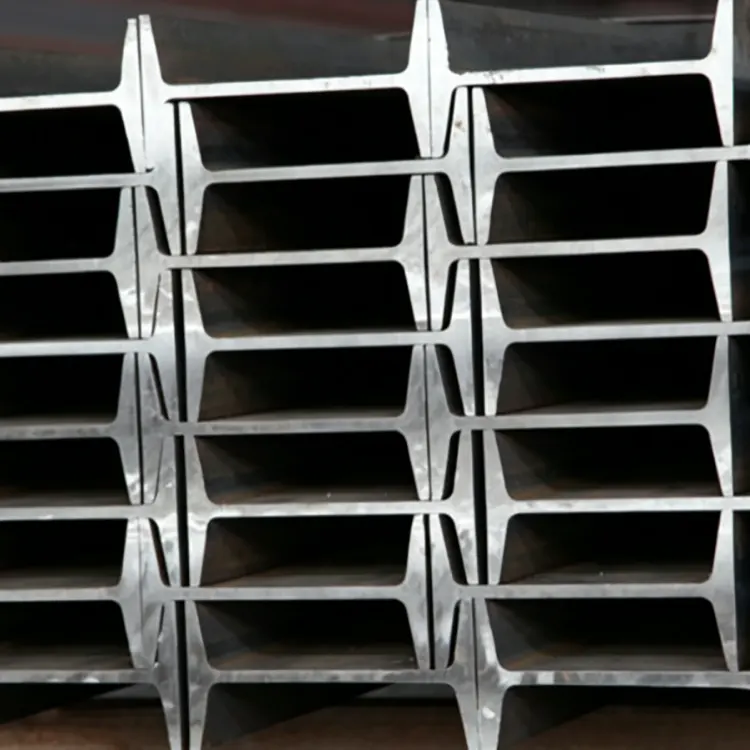

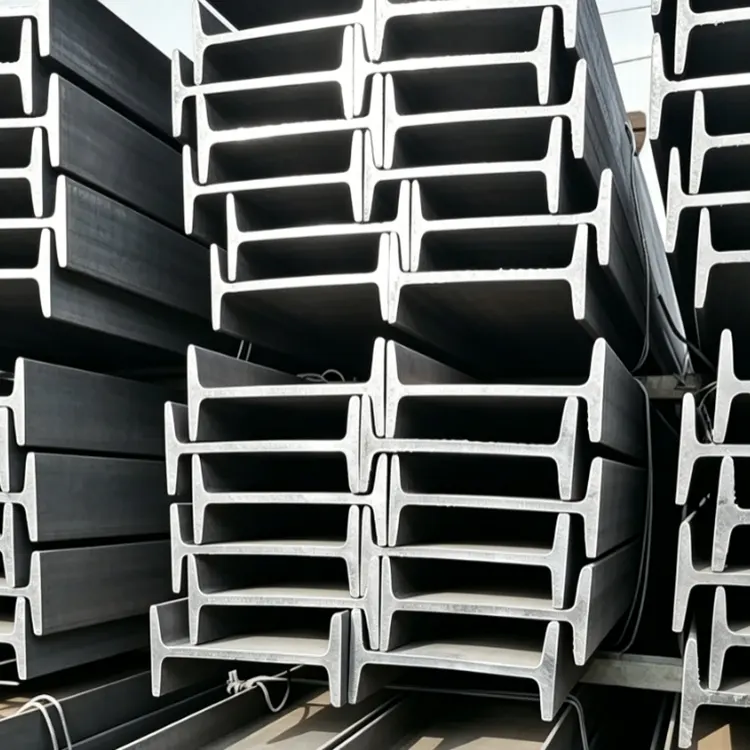

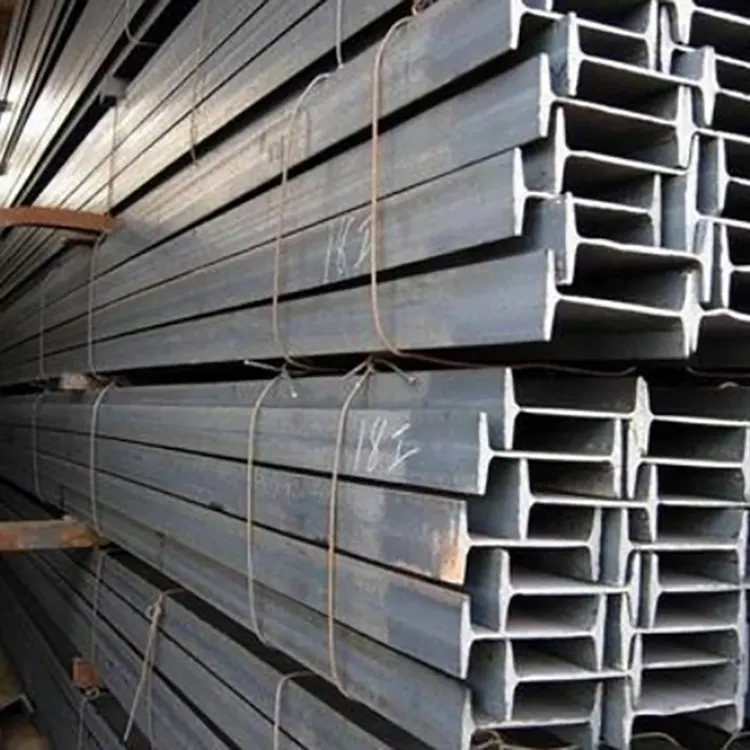

Unlike lightweight cold-formed profiles, Shixinda's China Hot Rolled I Beam has a high density of base material, with uniform internal grains, and no internal defects such as layering, porosity, or bubbles. The overall rigidity and anti-deformation ability are suitable for long-term heavy-load and dynamic load conditions.
- Integrated hot-rolled dense base material, with extremely strong structural stability
- National standard precision tolerances, high adaptability for on-site assembly
- Dual selection of high and low material grades, covering all scenarios of adaptability
- Resistant to impact and fatigue, with a longer service life
- Regular surface appearance, excellent compatibility for further processing
- Extremely versatile, suitable for a wide range of engineering applications
|
Model No. |
Height h (mm) |
Flange Width b (mm) |
Web Thickness d (mm) |
Theoretical Weight (kg/m) |
|
10# |
100 |
68 |
4.5 |
11.26 |
|
16# |
160 |
88 |
6.0 |
20.51 |
|
20a# |
200 |
100 |
7.0 |
27.91 |
|
25a# |
250 |
116 |
8.0 |
38.11 |
|
30a# |
300 |
126 |
9.0 |
48.00 |
|
40a# |
400 |
142 |
10.5 |
67.60 |
|
45a# |
450 |
150 |
11.5 |
80.42 |
Strictly follow the GB/T 706-2016 standard for hot-rolled steel sections. The steel is produced through a single-piece hot-rolling process without welding connections. The flange inclination, web thickness, and straightness tolerances meet the standards. It has excellent vibration and fatigue resistance, suitable for use in truck frames, factory main beams, and equipment bases.
Q235B: Suitable for general factory buildings, simple steel structures, and lifting tracks, with high cost-effectiveness;
Q355B Low Alloy High Strength: Suitable for heavy-duty factory buildings, bridges, and large mechanical supports. It is stable under low-temperature and high-load conditions; Each batch comes with an original material certificate and furnace batch number. It supports third-party inspection by SGS, meeting the requirements for import customs clearance in overseas projects.
Before storage, each batch is straightened and inspected for appearance. Bending, cracks, and non-standard materials with size deviations are removed to prevent the shipment of substandard products and reduce on-site construction losses for customers.
- Geometric dimension tolerance sampling inspection: Randomly sample each batch to test the cross-sectional height, flange width, web thickness, straightness, and curvature. All parameters are controlled within the allowable error range of the GB/T706-2016 national standard, eliminating defective products such as bias measurement, side bending, and twisting.
- Mechanical tensile and yield strength testing: Through a universal testing machine, test the yield strength, tensile strength, and elongation of the profiles. The mechanical properties of Q235B and Q355B materials meet the standards, and the load-bearing capacity matches the structural design parameters, meeting the engineering load-bearing design standards.
- Low-temperature impact toughness testing: Conduct low-temperature impact tests for materials used in harsh cold conditions. The profiles show no brittle fracture at low temperatures and have stable toughness, capable of adapting to harsh construction environments such as northern low temperatures and high altitudes.
- Internal non-destructive flaw detection: Our Hot Rolled I Beam uses ultrasonic flaw detection technology to check for internal layers, cracks, porosity, etc. in the profiles, ensuring the integrity and density of the base material and eliminating structural safety hazards caused by internal flaws.
- Heavy-load static compression test: Simulate the real heavy-load conditions of factory main beams and crane beams for static compression testing. The profiles are uniformly stressed, with slight deformation, and can quickly rebound after unloading, without irreversible deformation. The structural bearing safety factor is high.
- Welding compatibility testing: On-site sampling welding tests. The profiles have good welding fusion, no cracks, no pores, and the weld joint strength meets the standards. The welding nodes are stable, meeting the requirements for high-strength steel joint construction in the steel structure.
1. Direct supply from the source location, without any markup by middlemen
2. Full range of goods in stock, with rapid delivery for both large and small orders
3. One-stop customized processing and deep processing services
4. Comprehensive procurement of all types of steel materials
5. Compliance with relevant documents, suitable for acceptance in both domestic and overseas markets
6. Advantageous geographical location for logistics, enabling efficient fulfillment of both domestic and international trade
7. Full-cycle dedicated technical support and after-sales guarantee
A1: Hot rolled I-beams are formed as a single piece, have a dense base material, and are stronger in resisting heavy loads and fatigue. They are specifically used for main load-bearing structures and have far superior load-bearing stability compared to light steel sections.
A2: In general scenarios, Q235B offers better cost-effectiveness. For large spans, heavy loads, and low-temperature conditions, high-strength Q355B material should be chosen.
A3: It strictly follows the GB/T706-2016 national standard. Each batch comes with quality assurance materials and supports any third-party sampling re-inspection.
A4: It supports any custom cutting, shot blasting, painting, and other prefabrication processing. The completed components can be directly delivered.
A5: With complete qualifications, we can provide commercial inspection, material certificates, and customs declaration materials, which are suitable for customs clearance requirements in various countries.
A6: All specifications have sufficient spot shipment stocks. There is no mandatory minimum order quantity. Orders of any size can be quickly stocked and shipped.
A7: Long-term customers can enjoy inventory reservation, market price locking, batch-level discounts, and priority production and delivery of orders.
