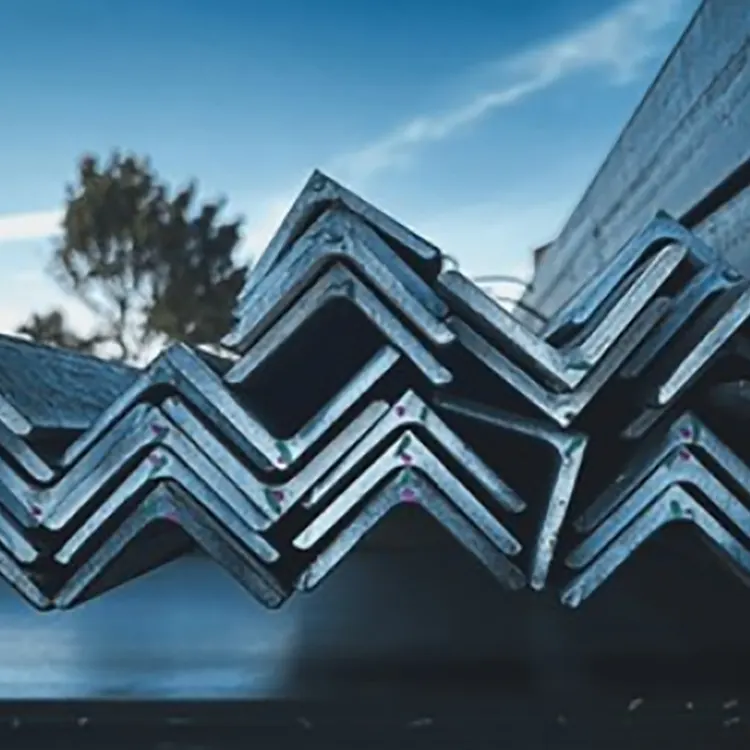

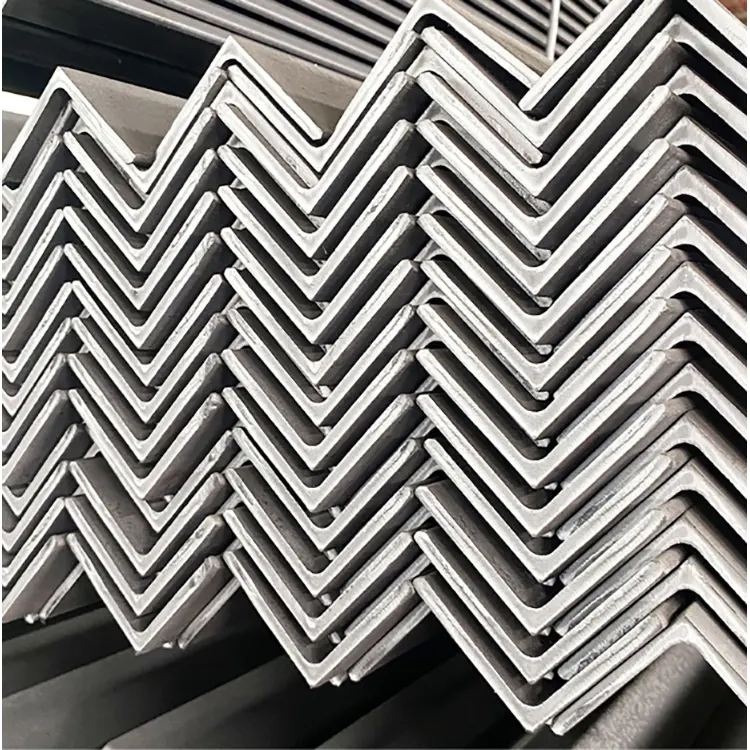

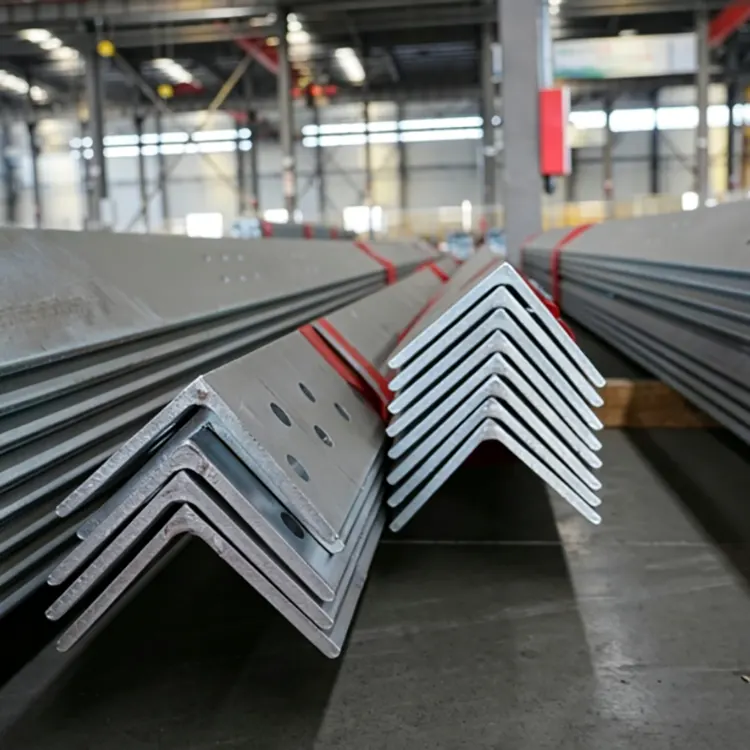

Unequal Angle Steel

Shixinda factory creates this Unequal Angle Steel, relying on mature hot-rolling technology for shaping. The steel texture is uniform, the cross-section is regular, there is no bending or distortion, and no rolling defects. The overall structural stiffness is stable, and it is suitable for various unconventional loading conditions and restricted installation scenarios.

Unlike the limitations of the general symmetrical structure of equilateral angle steel, unequal angle steel achieves dual optimization of installation adaptability and mechanical performance. The narrow limb is suitable for fitting and positioning, while the wide limb is responsible for load bearing and force support. It perfectly adapts to complex loading conditions such as single-sided cantilever, eccentric loading, and lateral mounting.

Core Advantages

1. Structural Performance Core Selling Points

1) Asymmetric cross-section of long and short limbs, suitable for eccentric / unilateral loading

The two limbs can be freely combined in width and narrowness. The wide limb can bear a large area of load, while the narrow limb can fit the wall, beam, and column for fixation. In scenarios with uneven loading such as cantilever supports, unilateral hanging equipment, photovoltaic supports, and iron tower diagonal braces, the rigidity is stronger and less prone to deformation. Compared to equal-sided angle steel, it saves materials with the same load-bearing capacity.

2) Stronger bending and torsion resistance, lightweight for cost reduction

Under the same weight, the wide limb significantly increases the moment of inertia of the cross-section, and its lateral bending and torsion resistance are superior to equal-sided angle steel. No need to select larger-sized steel sections for columns and brackets. This reduces the overall weight, material procurement, transportation, and foundation construction costs.

3) High compatibility in installation space, avoiding interference

One wide and one narrow limb can be flexibly arranged: the narrow edge can be close to the wall, pipes, or the side of steel beams, while the wide edge can bear the load. In narrow equipment layers, curtain wall ribs, pipeline supports, etc., there will be no conflict caused by the excessive width on both sides of equal-sided angle steel during installation.

2. Construction Processing Selling Points

1) Dual-sided multi-point fixation, flexible installation method

The wide limb can be drilled in multiple rows and welded for reinforcement, while the narrow limb can be used for lateral anchorage. One side can be attached to the base material, and the other side can be hung with pipelines, plates, and equipment. No additional pads or adapter parts are needed, simplifying the construction process.

2) Excellent processing performance, complete anti-corrosion solutions

Mainstream Q235B, Q355B materials are easy to cut, drill, bend, and weld. Support for hot-rolled black materials, hot-dip galvanizing, painting, stainless steel for various surface treatments. Resistant to corrosion in outdoor, coastal, and saline-alkali environments, with extremely low maintenance costs.

3) Reduce material loss, shorten construction time

A single unequal-sided angle steel can simultaneously achieve "attachment fixation + load-bearing support", eliminating the need for two equal-sided angle steels to be spliced together. Standard sizes of 6/9/12 meters are available in fixed lengths, supporting zero cutting, doubling, and reducing waste. This also reduces the amount of on-site splicing and welding work.

How long does the unequal-sided angle steel with hot-dip galvanizing last in coastal areas?

1. Divide the service life by the distance from the coast (conventional 60–100 μm standard zinc layer)

1) Inland near the sea, more than 10 km away from the coastline (mild salt spray)

No wave splashing, only air containing salt. Service life: 8–12 years

The zinc layer slowly and uniformly wears off, with local whitening in the later stage, and it will not quickly rust through the steel angle.

2) Coastal area 1–10 km, urban coastal region (moderate salt spray)

Daily sea wind carrying salt, and rain erosion, commonly used for photovoltaic supports, guardrails, and curtain wall ribs. Service life: 6–9 years

3) Intertidal zone, docks, seaside dams, seaside breeding areas (severe salt spray, waves splashing)

Seawater directly splashes, high humidity and high chloride ions. Service life: 4–6 years

The zinc layer at the edges and corners of the angle steel and at the bolt hole positions wears out the fastest, and red rust appears first.

2. Key variables affecting the service life

1) Zinc coating thickness

National standard conventional 60 μm: above is the standard service life;

Thickened zinc coating 80–120 μm: overall service life is increased by about 30%;

2) Additional environmental corrosion

Coastal areas + chemical plants, seafood processing zones, corrosion doubles, service life is directly halved;

3) Processing damage

On-site cutting, drilling, welding damage the zinc layer, without replenishing rich zinc paint, the damaged area rusts within 1–2 years, significantly shortening the overall service life.

Actual customer purchase reviews

1. Customer for steel structure engineering procurement: Previously, when using ordinary equilateral angle steel for cantilever supports, problems such as deformation under force and installation jamming occurred frequently. After switching to this Unequal Angle Steel, the adaptability was extremely high. The wide and narrow limb design precisely fit the sides of beams and columns, without occupying extra space. The stability of single-side bearing is better, and the overall material usage is more economical. The overall project cost has decreased significantly. The batch sizes are uniform and without distortion. The on-site assembly requires almost no secondary correction.

2. Customer for photovoltaic support accessories: Specifically purchased for use as photovoltaic diagonal supports and single-sided fixed brackets. The eccentric force effect is very stable, and it does not shake or deform in windy weather. The galvanized model has a uniform zinc layer, and it is safe to use outdoors and in open areas. The manufacturer has a complete range of spot-on specifications, no need for customization and waiting, and the quality of batch supply is consistent. Long-term cooperation is very convenient.

FAQ

Q1: What special working conditions is Unequal Angle Steel mainly suitable for?

A1: It is mainly designed for single-sided eccentric loading, narrow installation space, and cantilever mounting scenarios, replacing equilateral angle steel to solve installation interference and unstable loading problems.

Q2: What is the greatest advantage compared to equilateral angle steel?

A2: The asymmetric structure is suitable for complex loading conditions, has stronger installation compatibility, has a lighter self-weight with the same strength, and has a lower overall material cost.

Q3: Does it support on-site zero-cutting and fixed-length processing?

A3: It supports arbitrary fixed-length cutting, drilling, bending pre-treatment, and can directly deliver finished components, eliminating on-site processing procedures.

Q4: What material is preferred for outdoor damp and coastal environments?

A4: Q355B hot-dip galvanized unequal side angle steel is used preferentially, with excellent corrosion resistance and resistance to salt fog, providing a longer outdoor durability period.

Q5: Are the standard lengths and specifications of regular products complete?

A5: Standard lengths of 6/9/12 meters are available, and there is an abundance of regular width and depth beam specifications in stock. Rush orders can be quickly dispatched.

Q6: Can it be customized and processed according to construction drawings?

A6: Customized processing based on drawings is supported. Complete pre-processing services including welding, drilling, and anti-corrosion can be completed.

Q7: Can material inspection reports be provided for bulk purchases?

A7: Original factory material sheets and quality inspection certificates can be provided for each batch. Third-party sampling re-inspections are also supported.
